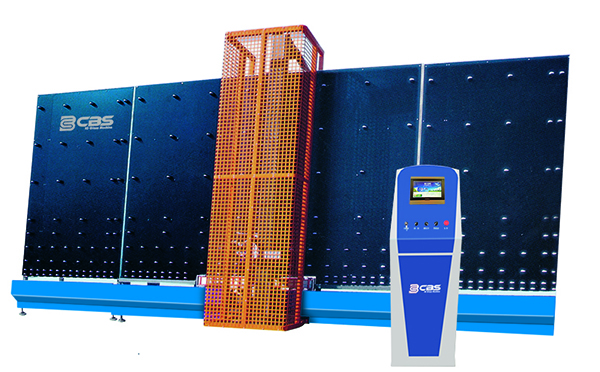

FRM-2500 CNC Low-E Glass Film Removing Machine

Features:

1)    CNC control system, parameter setting is easy and fast.

2)    Touch screen operation interface, automatically monitor the machine running state.

3)    4-axis servo motors movement ensure precise position.

4)    Working direction is easy to set according to requirement.

5)    Automatically test glass size, no need of changing wheel for uneven width film removing.

6)    Horizontal wheel working method can decrease the wheel wearing.

7)    Linear slide unit enable to get good film removing result.

8)    Automatically adjust the air pressure of wheel moving, achieve good film removing.

9)    Automatically distinguish the coating side of coated glass and Low-E glass.

Main technical parameter:

Power supply:	3-phase 380/415V 50Hz
Max. Glass size	2500x3000mm
Min. Glass size	300x600mm
Wheel Loss	5000~6000m/pcs, film removing width 15mm
Wheel rotary speed	0~2700 rpm inverter driving
Glass conveyor height	450+/-50mm
glass thickness	3~19mm
film removing width	10~150mm
Removing speed	0~30m/min (adjustable)
Accuracy	+/- 0.3mm
Air pressure	0.6~0.8MPa
Overall dimensions	8200x1800x3500mm
